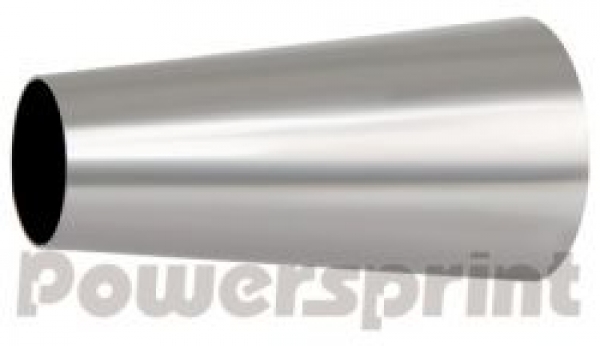

Reduzier-Konus 127 S-200 symmetrisch
127 mm Ø innen (5") auf 60,5 mm Ø innen
200 mm lang
symmetrisch
The Powersprint reduction cone, which can be applied universally, allows a stepless reduction or rather customisation of diameter to the greatest possible extend. Due to its smooth and stepless flanks the cone abets an improved exhaust gas flow without any additional swirling. There are two different shape options available (symmetric or asymmetric), as well as two different lengths (100 mm or 200 mm) with two different connecting diameters (101,6 mm Ø reducing to 60 mm Ø or 127 mm Ø reducing to 60 mm Ø).
The pipe cross section runs permanent straight proportional, so that the reduction cone can be shortened on any position of the centre line, to achieve a new connection size between connection A and B – remaining the original flank angle. To achieve more connection size by shortening the cone we recommend the 200 m version. Because of the steeper flank angle you will be able to produce new connection sizes accurately in a very easy way. The material thickness of the reduction cone will keep the same all along the whole material area, in opposite to workparts which have been cold drawn.
The field of application of the Powersprint reduction cone is incredibly versatile. Among other things it suits perfectly to embed other components like catalytic converters into an exhaust system. The asymmetric version allows an adjusted, changeable and shifted pipe routeing.
Due to the different basic lengths (...(A)S-100 und ... (A)S-200) and because of its static connection sizes, both cone types come with different flank angles.
